LATTYflon 3206
The Chemical Inertia of PTFE
for Dynamic Application

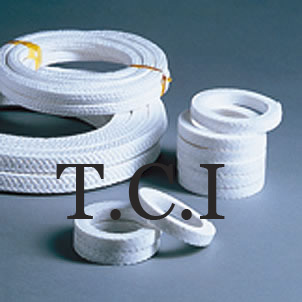

Packing made of 100% PTFE silk yarns, each single yarn being impregnated with PTFE using our exclusive "Filcoat"-process. The packing is then re-impregnated with a mix of PTFE and inert lubricant during plaiting operation.
Pumps, valves
Chemical, pharmaceutical and food industries.
The maximum temperature, pressure and speed given cannot be associated in any case.
T -200°C to 280°C |
P < 10 MPa (100 bar) |
S < 10 m/s |
pH 0 - 14 |
Gland packings for valves and pumps |
|
|
|
|
|
